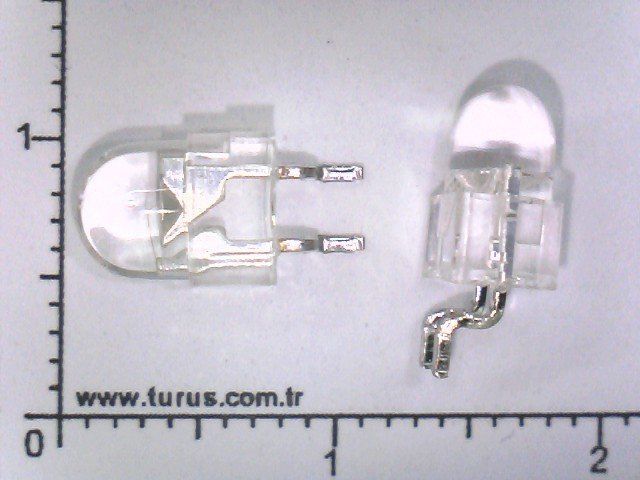

940-960 nm smd Transparent IR led
11,66 TL
| Lamp Type | IR LED | Chip Material | AlGaAs |
| Model Number | WEJ5C3JC-E0J3-D1 | Emitted Color | INFRARED |
| Wave Length | 940nm | Resin Color | Clear |
| Forward Voltage | 1.1-1.4V | Forward Current | 50mA |
| Reverse Voltage | 5V | Power Dissipation | 120mW |
| Peak Forward Current | 100mA | Viewing Angle | 20º |
| Reverse Current | 5μA | Working Temperature | -25℃~+85℃ |
| Diameter | 5mm | Storage temperature | -40℃~+100℃ |
| Features | High brightness;Low power consumption;High reliability and stability. | ||
| Flexibility in optical design and mechanical design. | |||
| Applications | Optical indicator;Indoor lighting;Interior automotive lighting;Backlight for LCD,switch and Symbol,display;Light pipe application;Advertisement | ||
